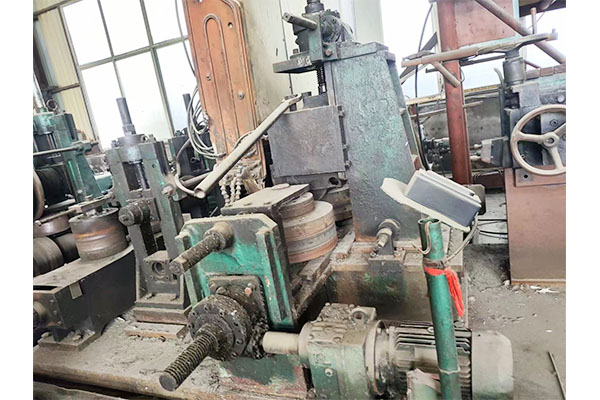

Used Directly Forming To Square Pipe Mill Of 100x100-200x200x8mm

Used Directly Forming To Square Pipe Mill Of 100x100-200x200x8mm

1 Square tube size 100x100-200x200mm
2 Square tube thickness 3.0-8.0mm
3 Produce speed 70M/min

Consult

Features
Technical Indicators
Overall Dimension

Processing Capacity

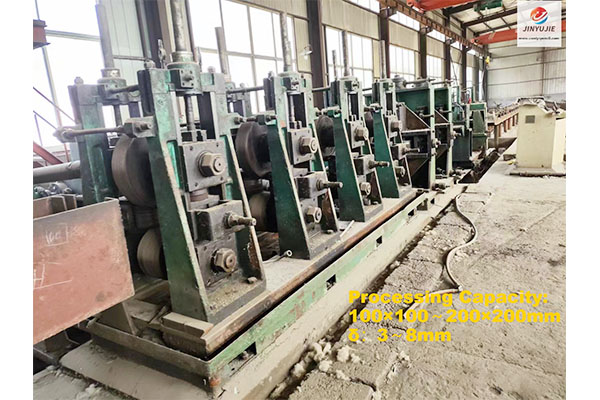

Processing Capacity of used directly forming to square pipe mill of 100x100-200x200x8mm :
Type
Diameter size
Thickness
Produce Speed
Square tube
100x100-200x200mm
3.0-8.0mm
70M/min.
REMARK:The pipe making speed cannot meet the maximum speed and maximum thickness at the same time.
Configuration
Configuration of used directly forming to square pipe mill of 100x100-200x200x8mm
Num
Name
Introduction
1
Uncoiler
Hydraulic uncoiler
2
Accumulator
Horizontal accumulator
3
Forming welding and sizing machine
Forming machine，Guiding and extrude and scraper，Cooling tank，Sizing machine ，Straightening device
4
Main driven motor
200KW Main driven motor
5
Flying saw
Computer servo flying saw
6
Run-out table
Single side kick out
7
Solid-state High-frequency welder machine
600-800kw of Sanyi or SiFang Sanyi for selection
8
Roller

Technological Process
Technological Process of used directly forming to square pipe mill of 100x100-200x200x8mm :

Working flow:
Raw material (steel coil) → Uncoiling → Material accumulating → Non-power leveling → Mill-forming → High-frequency welding → Removing burrs outside of weld seam → Cooling → Sizing → Roughly straightening → Fixed length cutting → Run-out table
Parameters
Parameter configuration of used directly forming to square pipe mill of 100x100-200x200x8mm
Mechanical name
Parameter information

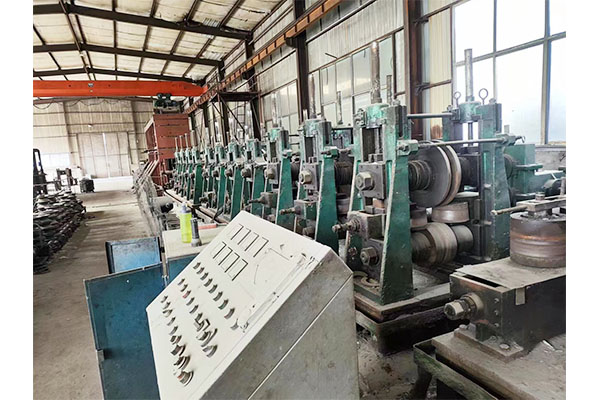

Forming welding and sizing machine
Forming machine
（1）Horizontal-roll stands Quantity
11 stands
（2）Diameter of horizontal shaft
Φ140mm
（3）Vertical-roll stands Quantity
3 stands
（4）Diameter of vertical shaft
Φ70mm
（5）Power transmission method
From universal transmission joint to horizontal roll stands
Sizing machine
（1）Horizontal-roll stands Quantity
4 stands
（2）Diameter of horizontal shaft
Φ 140mm
（3）Vertical-roll stands Quantity
4 stands
（4）Diameter of vertical shaft
Φ 70mm
（5）Power transmission method
From universal transmission joint to horizontal roll stands
Straightening device
Type
Turk’s head type ，2 set
Main driven motor
Main driven motor power
200KW

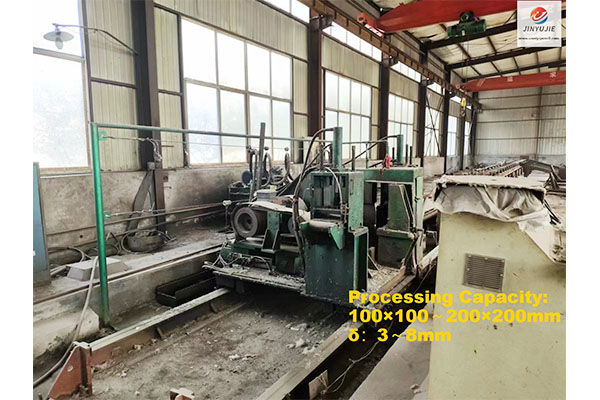

Computer servo flying saw
（1）
Cutting Maxi. Diameter

（2）Cutting Maxi. Wall-thickness

（3）Cutting speed
(Max):

Type	Diameter size	Thickness	Produce Speed
Square tube	100x100-200x200mm	3.0-8.0mm	70M/min.

Configuration of used directly forming to square pipe mill of 100x100-200x200x8mm
Num	Name	Introduction
1	Uncoiler	Hydraulic uncoiler
2	Accumulator	Horizontal accumulator
3	Forming welding and sizing machine	Forming machine，Guiding and extrude and scraper，Cooling tank，Sizing machine ，Straightening device
4	Main driven motor	200KW Main driven motor
5	Flying saw	Computer servo flying saw
6	Run-out table	Single side kick out
7	Solid-state High-frequency welder machine	600-800kw of Sanyi or SiFang Sanyi for selection
8	Roller

Parameter configuration of used directly forming to square pipe mill of 100x100-200x200x8mm
Mechanical name		Parameter information
Forming welding and sizing machine	Forming machine	（1）Horizontal-roll stands Quantity	11 stands
		（2）Diameter of horizontal shaft	Φ140mm
		（3）Vertical-roll stands Quantity	3 stands
		（4）Diameter of vertical shaft	Φ70mm
		（5）Power transmission method	From universal transmission joint to horizontal roll stands
	Sizing machine	（1）Horizontal-roll stands Quantity	4 stands
		（2）Diameter of horizontal shaft	Φ 140mm
		（3）Vertical-roll stands Quantity	4 stands
		（4）Diameter of vertical shaft	Φ 70mm
		（5）Power transmission method	From universal transmission joint to horizontal roll stands
	Straightening device	Type	Turk’s head type ，2 set
	Main driven motor	Main driven motor power	200KW
Computer servo flying saw		（1） Cutting Maxi. Diameter
		（2）Cutting Maxi. Wall-thickness
		（3）Cutting speed	(Max):
